Smart Strain Gauge - Torque
- Overview
-
Smart Strain Gauges can be mounted on any deforming surface to measure the tension/compression of under changing loads. The Smart Strain Gauge's signals can be transferred to any Android device on Bluetooth connection with the Smart Strain Gauge module.
The application area is almost unlimited, but as an example:
If we put Smart Strain Gauges on a kayak paddle's both sides, all themovement of the athlete will be easy to monitor during a training or a run. This can give important feedback for both the athlete and the trainers.
Smart Straing Guges are delivered in kit for easy assambly. Easy assamble, no need for soldering!
- Application
-
Industries: machinery, R&D, construction, etc.
Application area: laboratory, material testing, sports
Imagination is the limit! Almost any object can be transformed into a load sensor with a the Smart Strain Gauges.
The 2 parts of the system are the SmartStrainGauge and the SmartStrainGauge module:
SmartLoadCell modules are available in 1 and 2 channel versions. The 2-channel version can be used with 2 Smart Strain Gauge at the same time (for example by a kayak-paddle: left and right side).

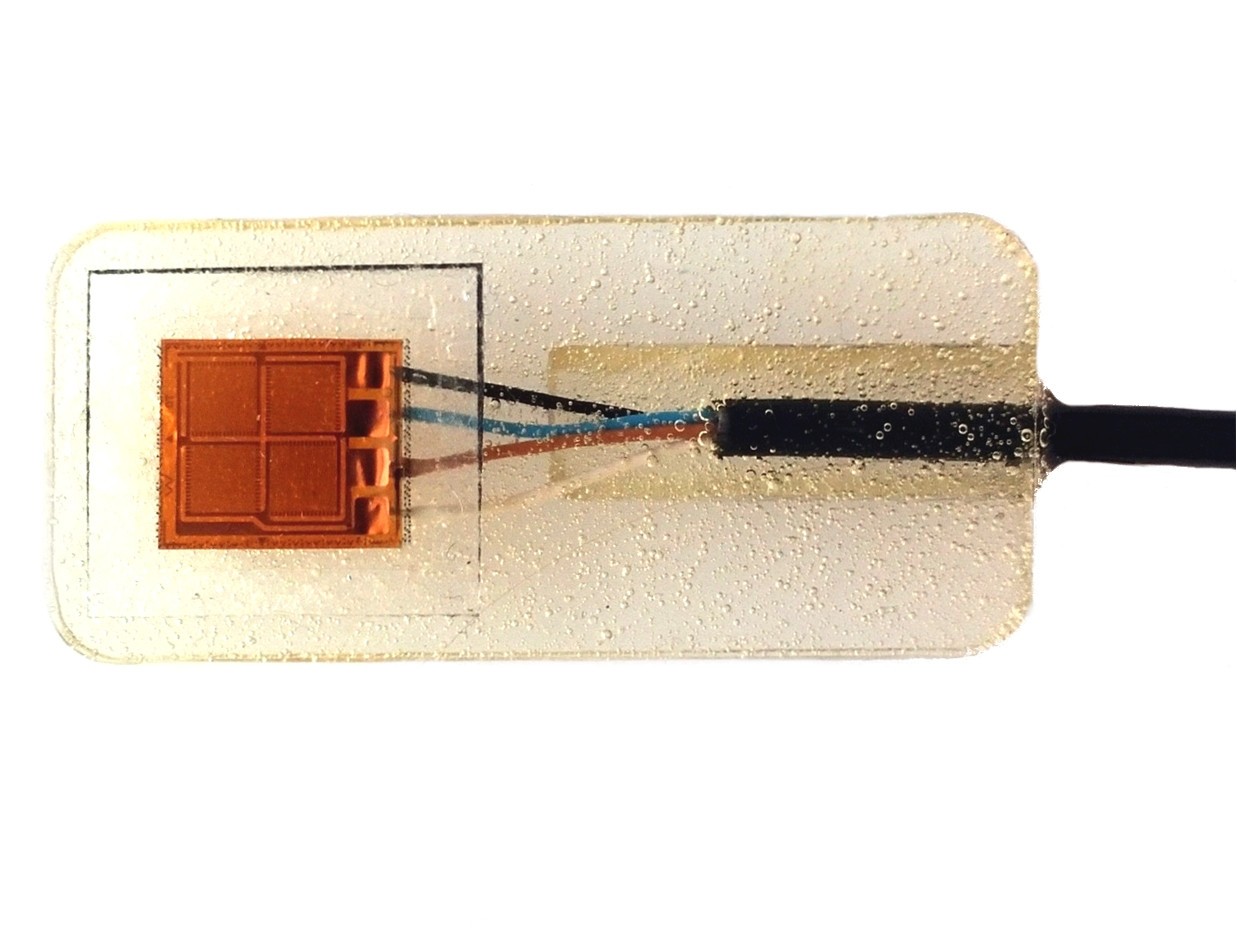

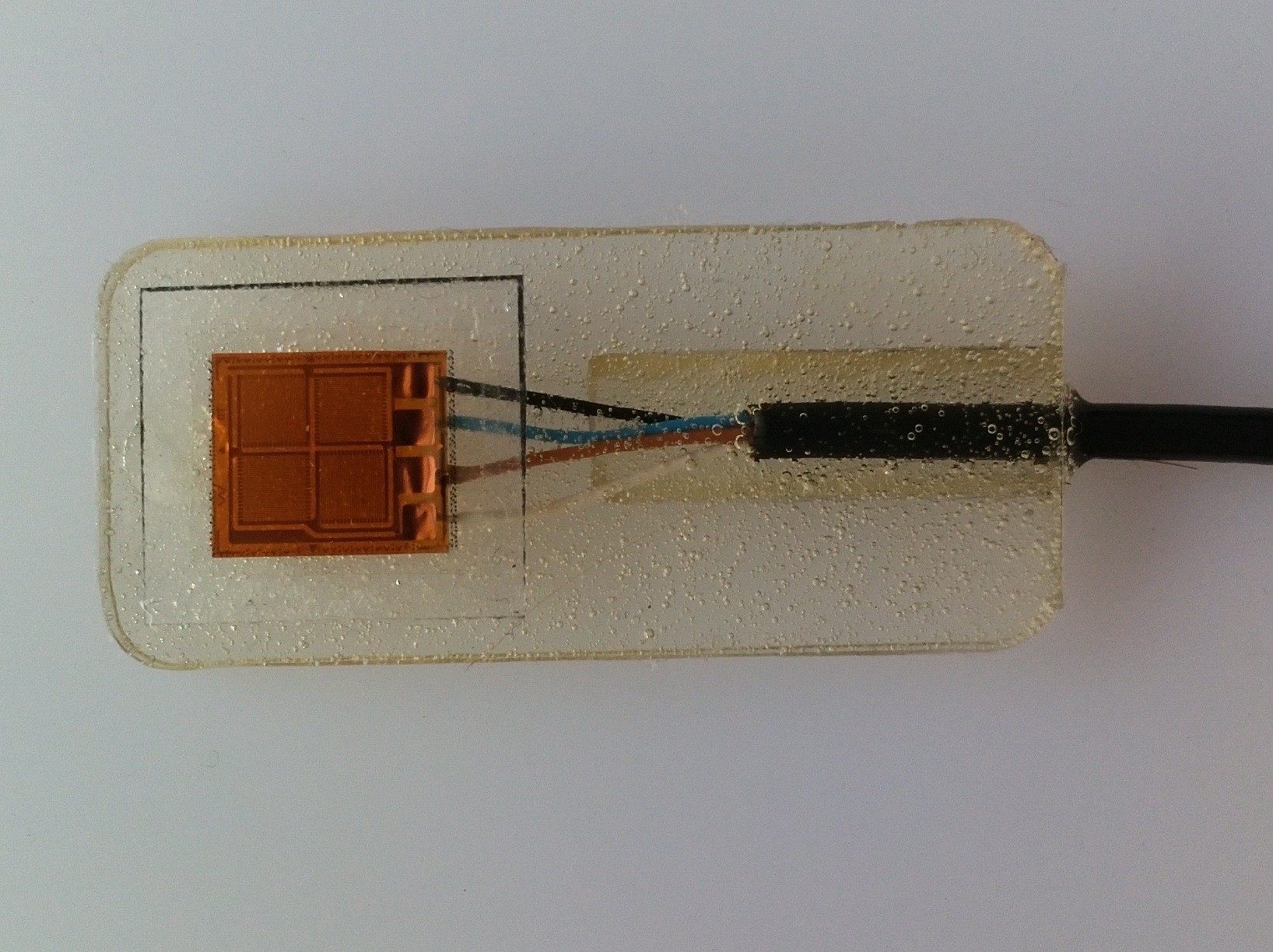

Smart Strain Gauges are available in tension/compression and in torque versions for the different applications.
Smart Strain Gauges are easy to install. They are shipped with all the installation supplementaries. Steps of installation:
- Preparation of the surface
- Sticking the Smart Straing Gauge on the surface
- Plug the cable in the SmartLoadCell module
- Calibrate the system - Benefits
-
- Easy to apply Strain Gauge
- Small, handy, wireless
- Wide range of applications
- Force-time diagram drawing and saving
- Range analysis
- High storing capacity on the smartphone
- Diagram zooming and scrolling in the history
- Adding comment to the results before saving
- Free Android application
- Included pc software
- 3 years warranty
- Additional Information
-
Additional Information
Included accessories No Smartphone requirement 1 GB RAM, 1 GHz Processor, 4 GB ROM Android version Android 4.4 or higher Measuring range - Units of measurement - Displayed values Actual, Max1, (Max2), torque-time diagram Accuracy +/- 0,25% F.S. Safe Overload No Maximum measuring frequency Depending on the application Range analysis Yes – In range / under range / over range Capable closure types No Maximum sample size No Calibration kit not available Operation time 12 hours DC supply Micro USB Bluetooth range No Included software Android application, Data manager for PC Memory Thousands of results (phone memory)
Maximum legth of recordings: 5000 pointsStored data’s measurement nr, peak results, date, time, diagram, instrument serial number, comment, calibration date Resistance grade IP 65 Language English Dimensions: Footprint / Height 40x18x2 mm (SmartStrainGauge), 80x40x20 mm (SmartLoadCell module) Net weight 0.05 kg (SmartStrainGauge), 0,15 kg (SmartLoadCell module) Shipping packaging Heavy duty waterproof case Shipping dimensions No Shipping weight 1 kg Country of Manufacture Hungary Warranty 3 years SmartLoadCell has 4 different measuring modes. Relevant modes for this application:

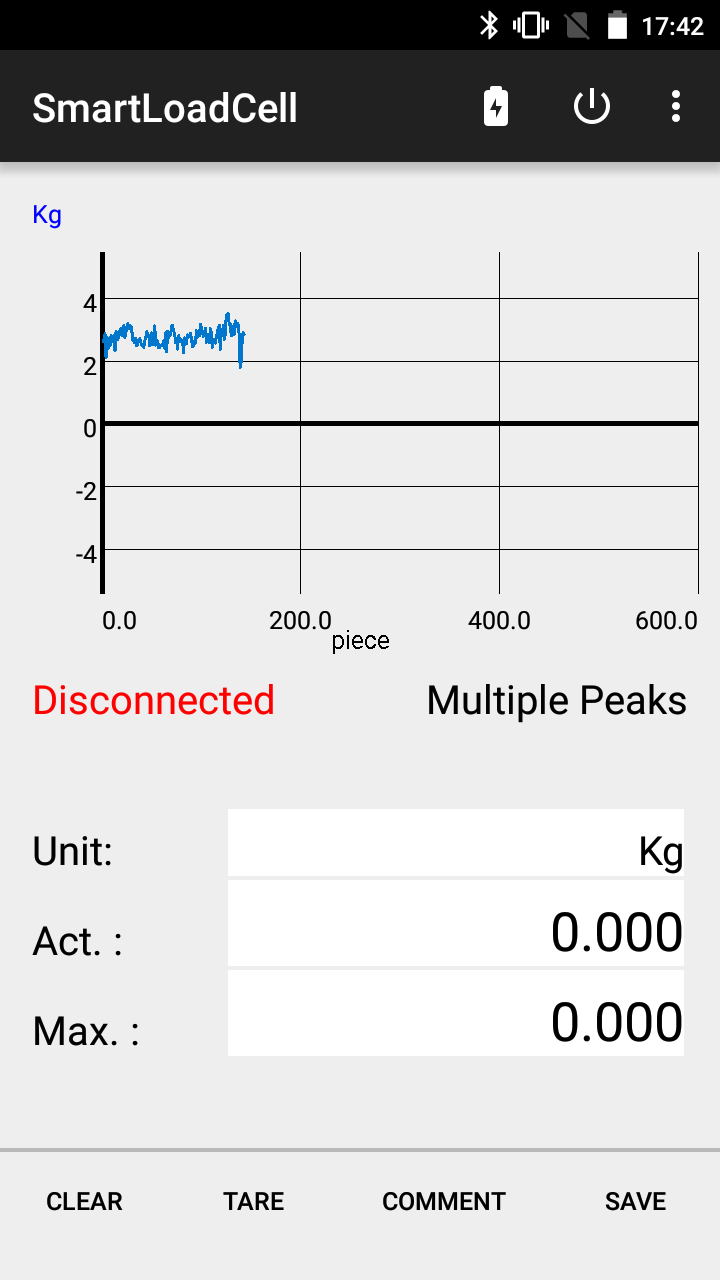

Multiple peak mode
Continuous mode
Results:
What to do with your results?
- Add comments
- Save
- View from the history – diagram can be zoomed and scrolled
- Send to pc on Bluetooth, wifi, mobile internet or USB cable
On the PC: the included data manager program can:
- convert results to csv-file (excel compatible)
- display the results with diagrams
- make statistical analysis of the results
- create report from the individual results or from the statistical analyses
